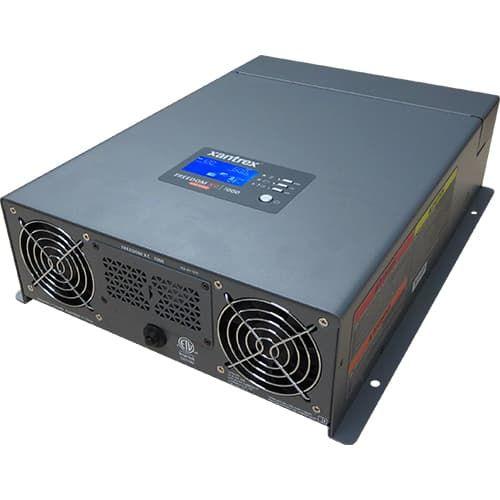

Xantrex, 817-1050, Freedom XC Inverter/Charger, 1000W

Model: 817-1050
GTIN: 00715535901059
Manufactured by: Xantrex
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
In Stock
Out of Stock

Price:

$1,055.55 $811.96

Would you like to add these items to your order?

Xantrex, 808-0817-01, Freedom X / XC remote panel with 25" Cable $129.50 $99.62

Manufacturer Info

Other products

12V, 1000W/50A, 2000W/80A - 120 Vac / 60 Hz

True sine wave 120 Vac inverter/charger with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4F - 104F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Inverter Key Features

Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
True Sine Wave AC Power: For operation of sensitive and motor loads
Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
Product Specifications | Download
Product Manual | Download

Built-in Charge Features

Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
Battery Equalization: Maximizes flooded battery life
Dead Battery Charging Down to 0 Vdc
Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
