Morningstar, SL-10L-24V, SunLight-10 amp with LVD (24V)

Model: SL-10L-24V
Manufactured by: Morningstar
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
In Stock
Out of Stock

Price:

$169.22 $130.17

Manufacturer Info

Other products

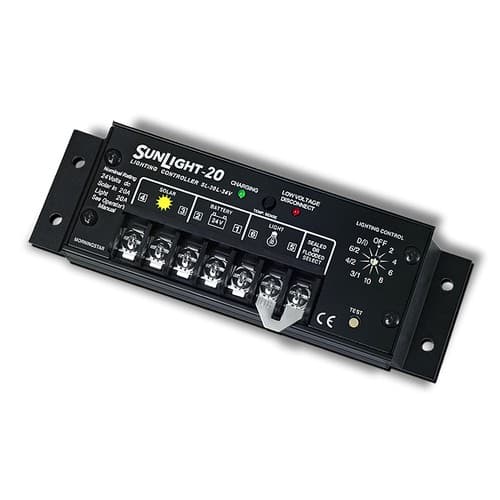

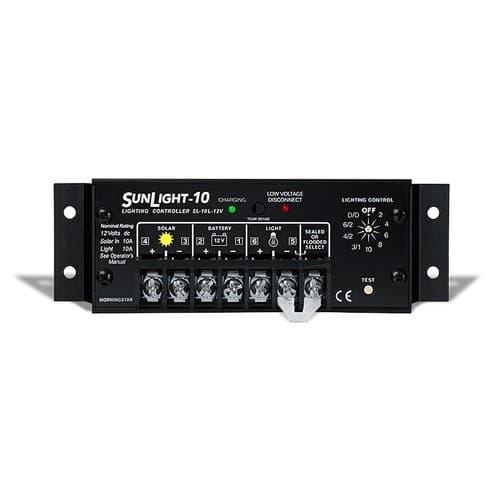

Morningstars SunLight solar lighting controller combines the SunSaver design with an advanced microcontroller for automatic lighting control functions.

Four Versions Available

12 Volt: 10 and 20 amp ratings
24 Volt: 10 and 20 amp ratings

Warranty

5 Years

Model Numbers

SL-10L-24V, SL-10L-12V, SL-20L-24V, SL-20L-12V

Key Features and Benefits

Microcontroller digital accuracy
Fully automatic operation
Ten field adjustable lighting control options
Special on/off/on lighting functions
Manual test capability
LVD override protection
Detects day and night using the PV array
Suitable for all 12/24 Vdc lamps
Sealed/Flooded battery select
Temperature compensation
Parallel with a SunSaver for 40 amps solar
Includes SunSaver battery charging circuit
Product Specifications | Download

SunLight Electrical Specifications	12 Volt	24 Volt
Rated Solar Input	10/20 A
Rated Load	10/20 A
25% Current Overload	5 min.
Regulation Voltage: Sealed Battery	14.1 V	28.2 V
Flooded Battery	14.4 V	28.8 V
Load Disconnect	11.7 V	23.4 V
LVD Reconnect	12.8 V	25.6 V
Temp. Comp. (mV/C)	-27	-54
Self-consumption	8 mA	9 mA
Operating Temp.	-40 to +85C
