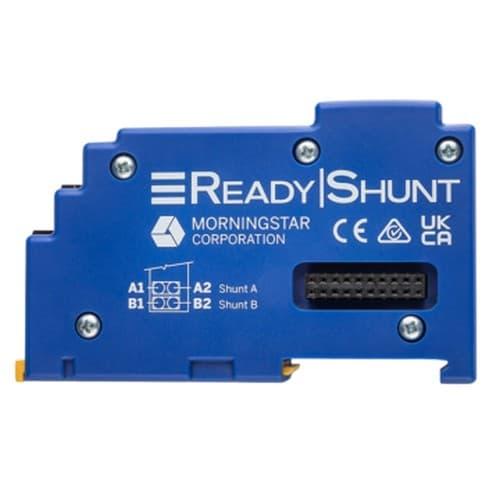

Morningstar, RB-SHUNT BLOCK, ReadyShunt Block: *Shunt sold separately* A snap-in ReadyBlock enabling complete intelligent monitoring, battery or external current measurement for system sources, loads and more
Manufacturer Info
eadyShunt optimizes the most popular battery chemistries, providing comprehensive battery metering for monitoring critical information with lead-acid and other commonly used battery types. No additional configuration or connections are required. ReadyShunt automatically activates, is recognized, and ready to go immediately after being snapped into a ReadyRail-equipped Morningstar product.
Part of the ReadyBlock suite of add-on- yet built-in- functionality available in Morningstar "host" components featuring the ReadyRail expansion system.
Part of the ReadyBlock suite of add-on- yet built-in- functionality available in Morningstar "host" components featuring the ReadyRail expansion system.
- “Add-on” in the sense that ReadyBlocks can be integrated into a system at any time, either on inception or later as needs arise
- “Built-in” because once added, ReadyBlocks become part of the host component, seamless integrated into both its hardware and software
- DataSheets / EN | Download
- Operations Manual / EN | Download
- Operations Manual / ES | Download
- Operations Manual / DE | Download
- Operations Manual / FR | Download
- Quick Start Guides / EN | Download
- Quick Start Guides / ES | Download
- Quick Start Guides / DE | Download
- Quick Start Guides / FR | Download
- RB-SHUNT KIT: complete package with ReadyShunt Block and the 500A 50mV Shunt
- RB-SHUNT BLOCK: snap-in piece (ReadyShunt Block) without Shunt
- RB-500-50: a 500A 50mV Shunt
- rovides an integrated “battery meter” for lead-acid and other chemistries to determine SOC and other health metrics
- Net battery current measurement enables system-wide maximum charge current into the battery when multiple charge sources are present.
- Current measurement data is automatically integrated into the GS LiveView dashboard, data logging. Thus there’s no more clunky 3rd party meter add-ons requiring different interfaces, meters, etc. No software configuration to integrate the data - we do that for you
- Shunt data is made available to the user for use in logic configuration for decision-making.
- Highly configurable to accommodate a wide range of shunt sizes with both 50mV and 100mV scaling options
- Available in a kit wit 50mV/500A shunt or just the block
