Manufacturer Info
Enables multiple controllers to share a single TriStar meter and display both single controller data (TriStar #1, TriStar #2) as well as aggregated data for the entire system.
Enables multiple controllers to share a single Relay Driver and fully utilize all 4 channels of the Relay Driver for different functions (alarms, load disconnects, generator starts) from multiple products.

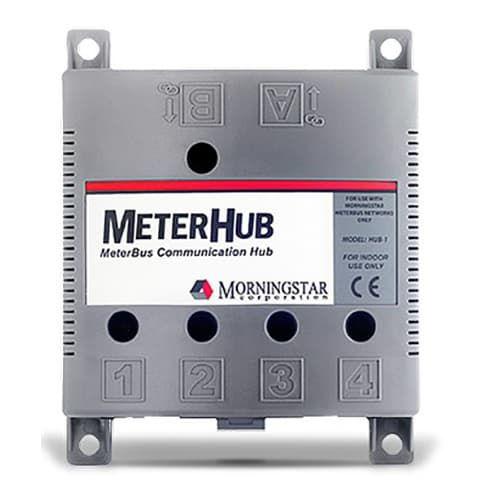

The MeterHub allows up to 15 Morningstar products on a single MeterBus network. The product electrically isolates devices that supply power to the network, preventing damage to the network in the event of grounding problems. Five status LEDs indicate the proper network connection to each port. The MeterHub is suitable for either wall or DIN rail mounting.
Key Features and Benefits
Compatible With
Enables multiple controllers to share a single Relay Driver and fully utilize all 4 channels of the Relay Driver for different functions (alarms, load disconnects, generator starts) from multiple products.
The MeterHub allows up to 15 Morningstar products on a single MeterBus network. The product electrically isolates devices that supply power to the network, preventing damage to the network in the event of grounding problems. Five status LEDs indicate the proper network connection to each port. The MeterHub is suitable for either wall or DIN rail mounting.
Key Features and Benefits
Compatible With
- SunSaver-MPPT
- TriStar TriStar-MPPT TriStar Meter-2
- TriStar Remote Meter-2
- Relay Driver
- MeterHub Typical Network Configuration
- Operators Manual
- Five Meterbus RJ-11 cableseach 1 meter in length
- Four mounting screws
- Product Specifications | Download
| Minimum Isolation (Ports 1-4) | 500 Volts |
| Self-consumption (per port) | 8 mA |
| Ambient Temperature | -40C to +60C |
| Storage Temperature | -55C to +85C |
| Humidity | 100% non-condensing |
| Tropicalization | Conformal coating-printed circuit board |
| Dimensions | 13.5 x 10.8 x 3.7 cm / 5.3 x 4.3 x 1.5 inch |
| Weight | 0.19 kg / 0.41 lbs. |
| Port Connections | RJ-11, gold plated |
| Enclosure | Type 1 (indoor and vented) |
| Compatible DIN rail | 35 mm standard |
