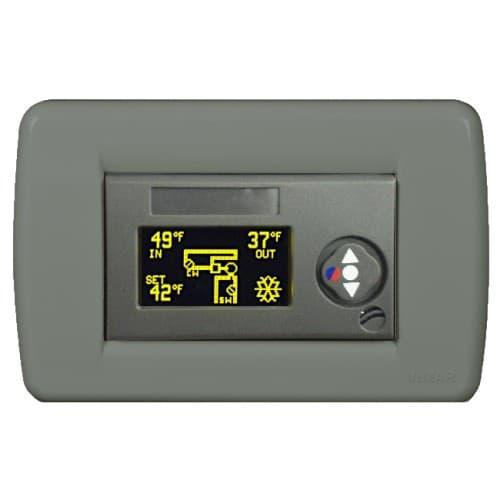

FX-2 Chiller OLED Joystick Control Display
The FX-2 Chiller OLED Joystick Control Display connects to the FX-2 Control Board (ASY-360) and allows for the control of a single-stage chiller system. The FX-2 Control Family was designed to support either DX/CW cabin control or chiller system control, all with a common control board. When operating as a chiller control, the FX-2 provides all of the required features for safe and simple operation.
The FX-2 Chiller OLED Joystick Control Display can be mounted in either the Vimar Idea or Gewiss Playbus frames. Hundreds of decorative bezels are available for either line.
Features
The FX-2 Chiller OLED Joystick Control Display connects to the FX-2 Control Board (ASY-360) and allows for the control of a single-stage chiller system. The FX-2 Control Family was designed to support either DX/CW cabin control or chiller system control, all with a common control board. When operating as a chiller control, the FX-2 provides all of the required features for safe and simple operation.
The FX-2 Chiller OLED Joystick Control Display can be mounted in either the Vimar Idea or Gewiss Playbus frames. Hundreds of decorative bezels are available for either line.
Features
- Universal 115/230 VAC 50/60 Hz power supply
- Directly drives compressor, loop water pump, and reversing valve AC outputs (and can also drive contactors)
- Sea water pump output is pilot duty and drives a contactor or pump relay
- High and low refrigerant pressure switch inputs
- 8-pin RJ-45 Display Interface
- Flow switch input
- Supply and return water temperature sensor inputs
- Control display allows for all programming and control
- Supports FX-2 Control Board w/ EasyStart daughterboard option
