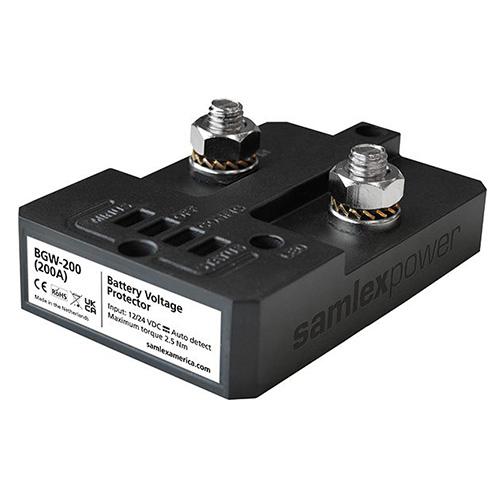

Samlex America, BGW-200, Battery Guard, 200A

Model: BGW-200
Manufactured by: Samlex America
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
In Stock
Out of Stock

Price:

$347.15 $267.04

Manufacturer Info

Other products

Battery Voltage Protector

The Battery Voltage Protector BGW-200 is an intelligent, user programmable, fully waterproof low voltage disconnect. The battery voltage protector prevents excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The BGW automatically detects the battery voltage (12 or 24V). The battery voltage protector is capable of carrying 200A continuous load and 210A transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V battery systems, which can be easily programmed. The BGW-200 has additional options for a remote off switch and an alarm output for connecting a buzzer, LED strip or relay. With its new rubberized polyurethane construction and low profile design, the battery voltage protector can be easily mounted in any location. Available in 40A, 60A and 200 Amp models.

2 Year Limited Warranty

Features

Waterproof IP66 rating
High voltage cut-off of 16 VDC protects equipment from over-voltage conditions.
Low Profile, sealed and rugged casing - allows flexibility in installation.
OFF Control input - disconnect battery through a remote switch or relay.
Status Indicator - output signal allows for external indication lamp or buzzer alarm.
Load shedding - disconnect non critical equipment early, extending the backup time on critical ones.
Product Manual | Download
Samlex Specifications (EN) | Download
Samlex Specifications (ES) | Download
Feature Sheet (EN) | Download
Feature Sheet (ES | Download
