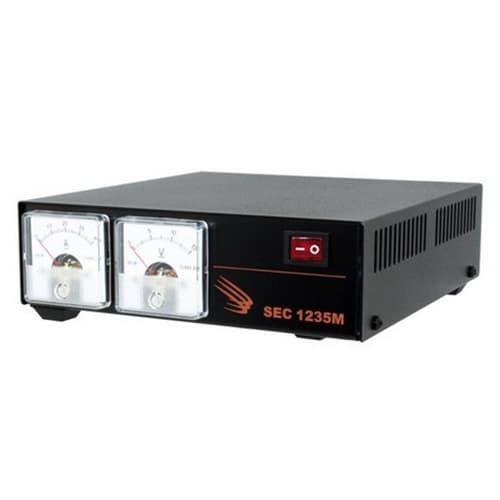

This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 30 Amps with an AC input of 120 Volts 60 Hz (230 Volts 50 Hz possible by internal jumper setting). These advanced switch-mode DC power supplies were designed specifically for land mobile radio applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with front panel ammeter and voltmeter and a detachable power supply cord with NEMA 5-15P plug. Features include over-load short-circuit and over-temperature protection. The AC-DC power supply conforms to FCC Part 15(B) class B digital device.

Design Features

• Advanced switch-mode technology
• Reliable power with minimum weight and size
• Circuit innovations minimize output voltage ripple and RFI
• Input voltage can be set at 120VAC or 240VAC
• UL listed to both USA & Canadian safety standards
• Product Specifications | Download
• Product Manual | Download

Applications

• Land mobile radio base stations
• Communications systems
• Security systems
• Test equipment
• Plotters
• GPS receivers
• Automotive & Marine displays
• DC computers
• 12 Volt lighting systems
• OEM applications

Input	100-130 VAC
Output	13.8 VDC
Amps	30 Amps
Fuse	8 Amps
Weight	4.7 (lbs)
Weight	2.13 (kg)
Dimensions	8.35 x 7.28 x 2.4 (in)
Dimensions	21.2 x 18.5 x 6.1 (cm)
Safety	UL/cUL
Warranty	3 Years (Canada/US)
