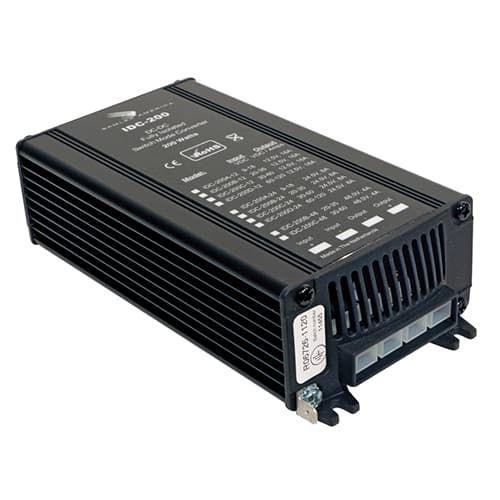

IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-200B-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 8 Amps (at 35 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4" push-on flat blade "quick disconnect" connectors. IDC-200B-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Features

• Fully Isolated
• Short Circuit Protected
• Current Limited
• Product Manual | Download
• Samlex Specifications (EN) | Download

Application

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

Input	20-35 VDC
Output	24.5 VDC
Amps	8 Amps
Weight	1.4 (lbs)
Weight	0.6 (kg)
Dimensions	6.9 x 3.5 x 1.9
Dimensions	176 x 88 x 50
Warranty	2 Year Limited
