Manufacturer Info

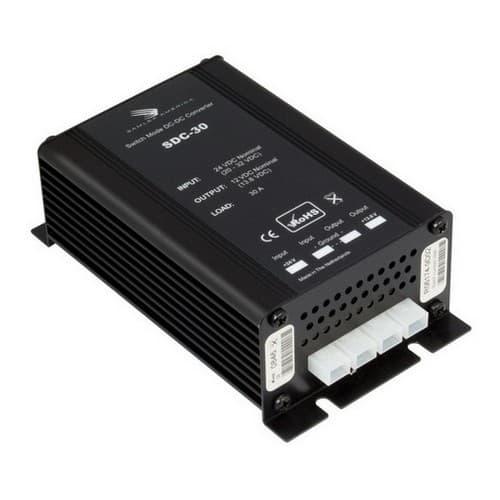

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload over-heating reverse polarity and over-voltage protection.
Design Features
Design Features
- Advanced switchmode design
- Mount in almost any location
- Compact and light weight
- Reverse polarity protection
- High efficiency
- Cycle by cycle current limiting circuit
- Overvoltage protection
- Short circuit protection
- Product Specifications | Download
- Product Manual | Download
- Product Manual - ES | Download
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
| Input | 20-32 VDC |
| Output | 13.8 VDC |
| Amps | 30 Amps |
| Weight | 1.2 (lbs) |
| Weight | 0.54 (kg) |
| Dimensions | 6 x 3.5 x 1.9 (in) |
| Dimensions | 15.2 x 8.9 x 4.8 (cm) |
| Warranty | 2 Years (Canada/US) |
