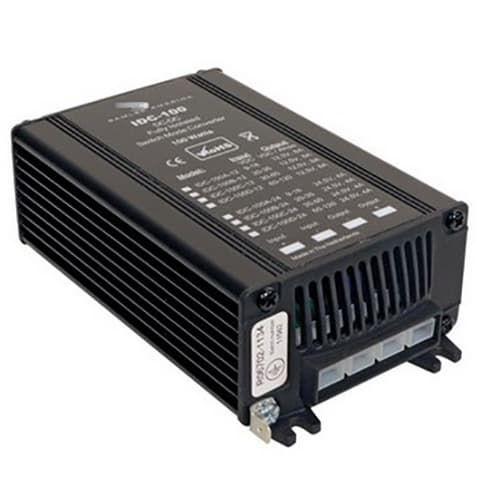

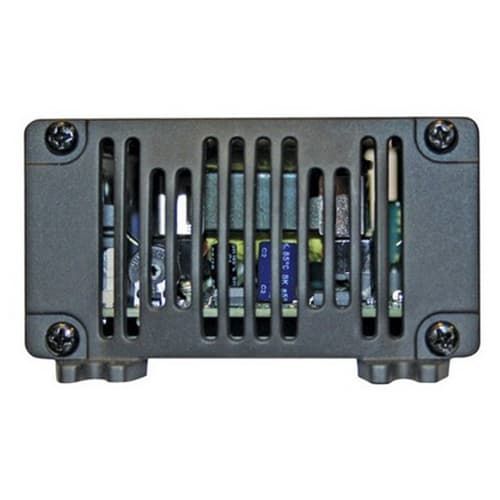

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100C-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 4 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing fold-back current limiting and protection against short circuit overheating overvoltage and reverse polarity connection. The unit comes with 1/4 push-on flat blade quick disconnect connectors. IDC-100C-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Design Features

• Fully Isolated
• Short Circuit Protected
• Current Limited
• 2 Year Warranty
• CE Approved
• Product Specifications | Download
• Product Manual | Download

Applications

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 24 Volt lighting systems
• AM/FM sound systems

Input	30~60 VDC
Output	24 VDC
Amps	4 Amps
Weight	1.2 (lbs)
Weight	0.54 (kg)
Dimensions	6 x 3.5 x 1.9 (in)
Dimensions	15.2 x 8.9 x 4.8 (cm)
Safety	CE
Warranty	2 Years (Canada/US)
