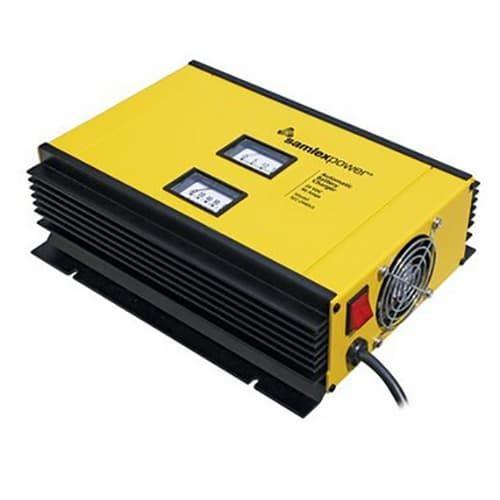

This advanced fully automatic three-stage 50 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries (Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V 60 Hz or 230 V 50 Hz AC source. By means of a DIP switch setting conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Design Features

• Switch mode technology for high efficiency lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC 50 / 60 Hz
• User Selectable ( by DIP Switch) for 2 or 3 stage rapid and safe charging of stand-alone and loaded Lead Acid Batteries
• Half Power Mode reduces maximum charging current to half the rated capacity allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit overload reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively
• Product Specifications | Download
• Product Manual | Download
• Product Manual - ES | Download

Applications

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems

Input	120 VAC 60 Hz or 230 VAC 50 Hz
Output	12 VDC
Amps	50
Remote Control	900-RC
Weight	9.0 (lbs)
Weight	4.1 (kg)
Dimensions	13.03 x 9.60 x 3.82 (in)
Dimensions	331 x 244 x 97 (mm)
Safety	Listed to UL Standard UL-1564 EMI Compliant to FCC Part 15(B) Class B
Warranty	2 Year (Canada/US)
