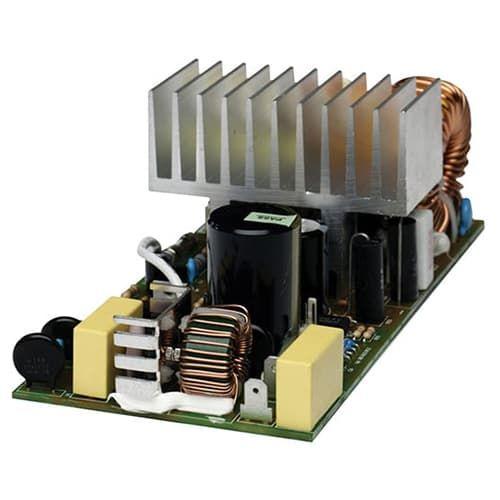

20 Amp Open Frame SMPS Modular Power Supply
SEC-2012MPSB
Open frame SMPS modular power supply. Used as modules in BRM series or can be used independently. Can be operated in parallel. Provides a highly regulated output DC voltage of 14.2 Volts at 20 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz model also available).
For use with SEC-40BRM, SEC-60BRM, SEC-80BRM & SEC-100BRM (120VAC)
2 Year Limited Warranty
Features
SEC-2012MPSB
Open frame SMPS modular power supply. Used as modules in BRM series or can be used independently. Can be operated in parallel. Provides a highly regulated output DC voltage of 14.2 Volts at 20 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz model also available).
For use with SEC-40BRM, SEC-60BRM, SEC-80BRM & SEC-100BRM (120VAC)
2 Year Limited Warranty
Features
- Provides N+1 redundancy (2 or more running in parallel)
- Expand output power by adding power modules
- Operation status LED
- Remote indication of operation status
- Open frame construction
- Samlex Specifications (EN) | Download
- Input: 108-132 VAC
- Output: 14.2 VDC
- Amps: 20 Amps
- Weight: 0.73 (kg)
- Weight: 1.6 (lbs)
- Dimensions: 7.2 x 3.4 x 2.5 (in)
- Dimensions: 18.3 x 8.6 x 6.4 (cm)
- Any critical power supply application
- Telecommunications systems
- Mobile sound/audio displays
- GPS receivers
- Security systems
- CCTV systems
