Fortress Power, Envy 10 kW, Solar hybrid inverter; Max 15KW PV array; IP 65 outdoor rated; Built-in APSmart RSD Transmitter
Manufacturer Info
Fortress Power

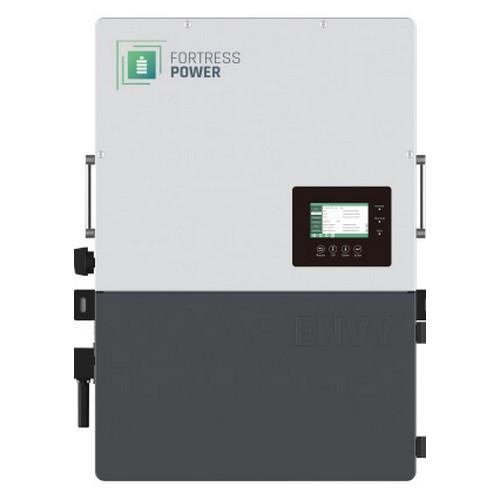

Envy 8kw & 10kw
Whole Home Solar Storage Inverter
The Fortress Power Envy 8kW and 10kW are a whole-home, all-in-one inverter solution. Paired with the Fortress Power eFlex 5.4 kWh, the eVault MAX 18.5 kWh or LFP-10 MAX batteries, the Envy features a 60A AC passthrough providing up to 8kW (33.3@ 240V) or 10kw (41.6A @240V) of whole-home backup power. The Envy features a built-in generator input with AC/DC coupling, on- and off-grid capabilities, plus a 2 MPPT output allowing for a maximum of 13 kW PV array (Envy 8kW) or 15kW PV array (Envy 10kW). The Envy is equipped with a built-in APsmart Module Level Rapid Shutdown Transmitter and Button, along with integrated AC & DC breakers allowing for fast installation and commissioning. Use our online monitoring app to access your system from anywhere.
Key Features
Envy 8kw & 10kw
Whole Home Solar Storage Inverter
The Fortress Power Envy 8kW and 10kW are a whole-home, all-in-one inverter solution. Paired with the Fortress Power eFlex 5.4 kWh, the eVault MAX 18.5 kWh or LFP-10 MAX batteries, the Envy features a 60A AC passthrough providing up to 8kW (33.3@ 240V) or 10kw (41.6A @240V) of whole-home backup power. The Envy features a built-in generator input with AC/DC coupling, on- and off-grid capabilities, plus a 2 MPPT output allowing for a maximum of 13 kW PV array (Envy 8kW) or 15kW PV array (Envy 10kW). The Envy is equipped with a built-in APsmart Module Level Rapid Shutdown Transmitter and Button, along with integrated AC & DC breakers allowing for fast installation and commissioning. Use our online monitoring app to access your system from anywhere.
Key Features
- IP65 rated for indoor & outdoor installations
- 2 MPPTs output for
- Max Input 13KW PV Array (Envy 8kW)
- Max Input 15KW PV Array (Envy 10kW)
- AC, DC and AC/DC combined coupling
- AC Coupling To Existing PV Array And/Or DC Coupling To New PV Array
- Built-in Generator Input
- 10 units in parallel
- Local and Remote monitoring/app
- Color LCD touch screen.
- Batch Settings
- Rapid Shut Down Transmitter Built-in
- 8kW Inverter -16kW (67A At 240V) Surge Capacity
- 10kW Inverter -20kW (83A at 240V) Surge Capacity
- Seamless Transfer
- Wireless Fleet Monitoring and Wireless Programming
- Backup
- Off-Grid
- Zero Export
- Time-of-Use
- Virtual Power Plant
- Peak Shaving
- Net Metering
- Smart load
- Microgrid
- Envy 8k/10kW Inverter -Data Sheet | Download
- Envy 8k/10k Inverter -Manual | Download
- Fortress Power Warranty -Envy 8k (CDBG) | Download
- Fortress Power Warranty -Envy 8k / 10k | Download
- NOM Certification | Download
- OGPe Certification | Download
- ENVY 8K10K UL1741 SB 3RD ED. | Download
| Envy 8kW | Envy 10kW | |
| Input DC (PV Side) | ||
| Max. DC Input Power for Single MPPT | 6000W / 6000 W | 6000W / 6000 W |
| Max. PV Input Power | 13000W | 15000W |
| Max. PV Power Delivered to Battery & AC Outputs | 12000W | 12000W |
| DC Input Voltage Range | 100V-600V | 100V-600V |
| Nominal DC Input Voltage | 360V | 360V |
| Full Power MPPT Voltage Range | 170V-500V | 210V – 500V |
| Max. DC Input Current | 25A / 25A | 25A / 25A |
| MPPT Number/(Strings per MPPT) | 2 / 2 | 2 / 2 |
| Output/Input AC (Grid) | ||
| Continuous AC Power to Grid | 8000W (240V) | 10000W (240V) |
| Continuous AC Power to Load with Grid or Generator | 14,400W (240V) AC Passthrough/ 12000W (240) GEN | 14,400W (240V) AC Passthrough/ 12000W GEN |
| Nominal Output Voltage | 120/240V Single Split Phase, 120/208V Single Split Phase, 120/208V Three Phase | 120/240V Single Split Phase, 120/208V Single Split Phase, 120/208V Three Phase |
| Max. Continuous AC Current | 33.3A @ 240V | 41.6A @ 240V |
| Nominal AC Frequency | 50Hz/60Hz | 50Hz/60Hz |
| Output AC (Off-Grid) | ||
| Max. Output Power | 8000W | 10000W |
| Nominal Output Voltage | 120V/240V | 120V/240V |
| Nominal Output Frequency | 50Hz/60Hz | 50Hz/60Hz |
| Nominal Output Current | 33.3A @ 240V | 41.6A @ 240V |
| Peak Power | 16kW / 500ms | 20kW / 500ms |
| Switching Time | Seamless | Seamless |
| Dedicated Auto-start Generator Port | 50A / 12kW | 50A / 12kW |
| Battery Parameters | ||
| Compatible Battery Type | eVault Max, eFlex, LFP-10 MAX | eVault Max, eFlex, LFP-10 MAX |
| Nominal Battery Voltage | 48V | 48V |
| Battery Voltage Range | 48V-56V | 48V-56V |
| Maximum Charging/Discharging Current | 167A | 210A |
| Maximum Charging/Discharging Power | 8000W | 10000W |
| Efficiency | ||
| MPPT Efficiency | 99.9% | 99.9% |
| Max. Efficiency | 97.5% | 97.5% |
| CEC Efficiency | 96.5% | 96.5% |
| Protection | ||
| Anti-islanding Protection | YES | YES |
| DC Switch | YES | YES |
| Ingress Protect Degree | NEMA 4X, IP65 | NEMA 4X, IP65 |
| SPD Protection | YES | YES |
| AFCI | YES | YES |
| RSD | Built-in APsmart Transmitter | Built-in APsmart Transmitter |
| General Data | ||
| Dimensions | 580 x 490 x 265mm (22.8 x 19.3 x 10.4 in) | 580 x 490 x 265mm (22.8 x 19.3 x 10.4 in) |
| Weight | 44kg (97lbs) | 44kg (97lbs) |
| Display | Color LCD | Color LCD |
| Ambient Temperature Range | -25 to 60 °C (-13 to 140 °F) | -25 to 60 °C (-13 to 140 °F) |
| Cooling | FAN | FAN |
| Communication | RS485/Wi-Fi/CAN | RS485/Wi-Fi/CAN |
| Standard & Certification | ||
| Certifications | UL1741, UL1741SB, IEEE1547A, rule 21, ISO-NE, FCC15 class B, HECO, CEC, Luma, SGIP, NOM | UL1741, UL1741SB, IEEE1547A, rule 21, ISO-NE, FCC15 class B, HECO, CEC, Luma, SGIP, NOM |
| Warranty | 10 Years | 10 Years |
