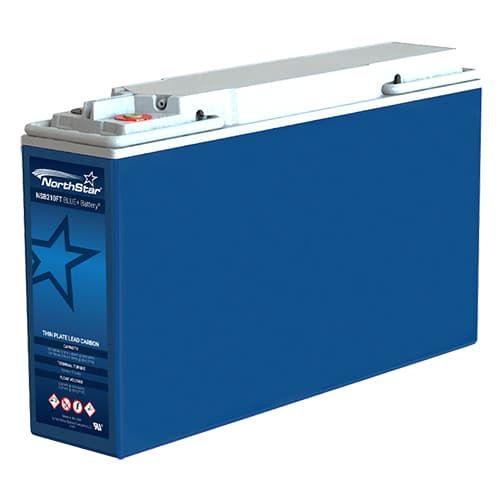

NorthStar, NSB210FT BLUE+, BLUE+ VRLA-AGM Pure Lead Carbon 200Ah, 12V Front Terminal, kWh Storage Per Battery: 2.40 kWh Nameplate / 1.20 kWh Effective
Manufacturer Info
The NSB BLUE+ Battery delivers ultra fast recharge and exceptional PSoC cycling performance.
- Exceptional PSoC cyclic performance 2050 cycles @50% DoD
- Design life 12+ years at 20C (68F)
- EUROBAT design life definition: Very Long Life (12+ years)
- Ultra fast recharge
- Shelf life of up to 24 months
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Flame retardant (UL 94 VO) and LOI of at least 28%
- Lead carbon added to negative electrodes increases power and reduces sulfation
- High potential fuel savings when used with hybrid genset applications
- Operating temperature range -40C to +65C (-40F to 149F)
- State-of-the-art automated manufacturing ensures consistency and reliability
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
- Non-halogenated thermally sealed plastic casing
- Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (i) and (ii)
- Product Datasheet | Download
| Terminal | Female M8 x 1.25 |
|---|---|
| Terminal torque | 8.0 Nm (71 in-lbs) |
| 10 hr capacity to 1.80VPC @ 25C (77F) | 200 Ah |
| 8 hr capacity to 1.75VPC @ 25C (77F) | 198 Ah |
| Float voltage @ 20/25C (68/77F) | 2.28 / 2.27 VPC |
| Impedance (1Khz) | 2.6 m? @ 25C (77F) |
| Conductance | 2211 S |
| Short circuit current | 6000 A |
| Maximum charge current (A) | No Limit |
| Operation temperature range | -40C to +65C |
| Nominal voltage | 12 V |

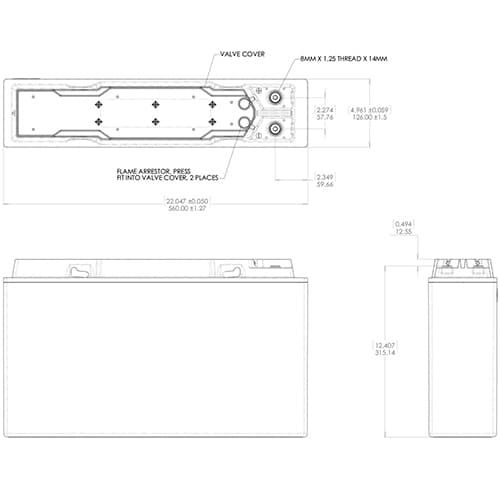

| Height | 12.9 in |
|---|---|
| Width | 4.96 in |
| Length | 22 in |
| Weight | 152 lbs |
