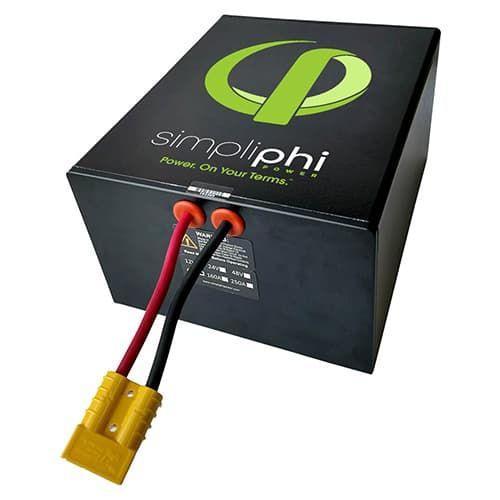

Simpliphi, PHI-1.4-12-60, 1.4 kWh, Deep-Cycle Lithium Ferro Phosphate Battery, 12V

Model: PHI-1.4-12-60
Manufactured by: SimpliPhi
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$1,607.34 $1,236.42

Manufacturer Info

Other products

PHI 1.4 Battery

The PHI 1.4 kWh 60 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, lightweight and scalable. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.

Specification Sheet | Download
Product Brochure | Download
10 Year Limited Warranty | Download
Installation Manual | Download
Return Policy | Download
Terms and Conditions - Product Sales | Download

CHEMISTRY	Lithium Ferro Phosphate (LFP) The safest Lithium Ion chemistry available No cobalt, risk of thermal runaway or fire
BMS	Built-in Battery Management System
CONNECTORS	Built-in SB50 Anderson Connector
COMPATIBILITY	Compatible with all industry standard inverters and charge controllers Battery bank-to-inverter output sizing must adhere to a 2:1 ratio: battery quantity inverter kWAC rating/ inverter efficiency) / battery MAX Continuous Discharge Rate in kWDC
MAINTENANCE	Maintenance-free No ventilation, cooling or thermal regulation required

PHI 1.4	12V	24V
DC Voltages - Nominal	12.8VDC	25.6VDC
Amp-Hours	115 Ah	57 Ah
Rated kWh Capacity @ C/2	1.4 kWh DC @ 100% DOD 1.12 kWh DC @ 80% DOD	1.4 kWh DC @ 100% DOD 1.12 kWh DC @ 80% DOD
MAX Discharge Rate (10 minutes)	60 Amps DC (0.76 kW DC)	60 Amps DC (1.53 kW DC)
MAX Continuous Discharge Rate	40 Amps DC (0.51 kW DC)	28.5 Amps DC (0.73 kW DC)
MAX Continuous Charge Rate	40 Amps DC (0.51 kW DC)	28.5 Amps DC (0.73 kW DC)
DC Voltage Range1	12 VDC to 14 VDC	24 VDC to 28 VDC
Depth of Discharge1	up to 100%	up to 100%
Operating Efficiency	98%	98%
Charge Temperature1	32 to 120F (0 to 49C)	32 to 120F (0 to 49C)
Operating Temperature1	-4 to 140F (-20 to 60C)	-4 to 140F (-20 to 60C)
Storage Temperature1	6 months: 14 to 77 F (-10 to 25 C) 3 months: -4 to 113 F (-20 to 45 C)	6 months: 14 to 77 F (-10 to 25 C) 3 months: -4 to 113 F (-20 to 45 C)
Self-Discharge Rate	<1% loss per month	<1% loss per month
Cycle Life	10,000+ (@80% DOD)	10,000+ (@80% DOD)
Memory Effect	None	None
Warranty Period	10 Years	10 Years
Weight	33.28 lbs (15.1 kg)	33.28 lbs (15.1 kg)
Dimensions	11.25 x 9.25 x 6.25 inches/0.37 ft3 (23.495 x 28.575 x 15.875 cm/0.010m3)	11.25 x 9.25 x 6.25 inches/0.37 ft3 (23.495 x 28.575 x 15.875 cm/0.010m3)
