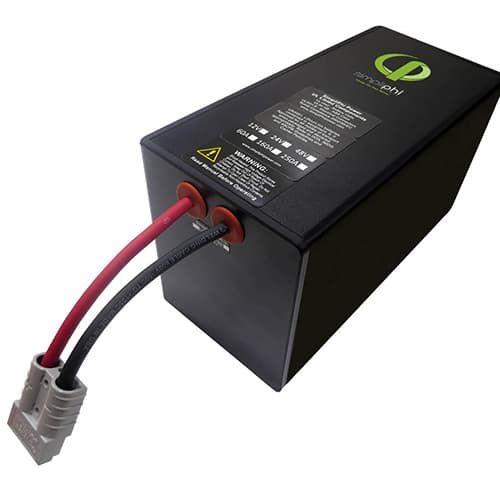

Simpliphi, PHI-730-12-60, 730 WH Deep-Cycle Lithium Ferro Phosphate Battery, 12V

  • Model: PHI-730-12-60
  • Manufactured by: SimpliPhi
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$1,148.10 $883.16

Manufacturer Info

PHI 730 Battery

The PHI 730 Wh deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and manufacturing methods. It is modular, lightweight and scalable. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency, back-up portable and mobile.

Description
  • 12V and 24V LFP batteries with proprietary architecture and Battery Management System (BMS) - do not require ventilation, cooling or thermal regulation
  • Compatible with all industry standard inverters and charge controllers Battery bank-to-inverter output sizing must adhere to a 2:1 ratio: battery quantity inverter kWAC rating/ inverter efficiency) / battery MAX Continuous Discharge Rate in kWDC
  • Drop in replacement for lead acid
  • LFP is the safest, most environmentally benign Lithium Ion chemistry available - no cobalt or risk of thermal runaway
  • No AC or toxic liquid cooling - negligible parasitic drain - long cycle life
  • Non-toxic and non-hazardous recyclable materials
  • Specification Sheet | Download
  • Product Brochure | Download
  • 10 Year Limited Warranty | Download
  • Installation Manual | Download
  • Return Policy | Download
  • Terms and Conditions - Product Sales | Download
PHI 730 12V 24V
DC Voltages - Nominal 12.8VDC 25.6VDC
Amp-Hours 57 Ah 28 Ah
Rated kWh Capacity @ C/2 730 Wh DC @ 100% DOD 584 Wh DC @ 80% DOD 730 Wh DC @ 100% DOD 584 Wh DC @ 80% DOD
MAX Discharge Rate (10 minutes) 50 Amps DC (640 W DC) 25 Amps DC (640 W DC)
MAX Continuous Discharge Rate 28.5 Amps DC (364.8 W DC) 14 Amps DC (358.4 W DC)
MAX Continuous Charge Rate 28.5 Amps DC (364.8 W DC) 14 Amps DC (358.4 W DC)
DC Voltage Range1 12 VDC to 14 VDC 24 VDC to 28 VDC
Depth of Discharge1 up to 100% up to 100%
Operating Efficiency 98% 98%
Charge Temperature1 32 to 120 F (0 to 49 C) 32 to 120 F (0 to 49 C)
Operating Temperature1 -4 to 140F (-20 to 60C) -4 to 140F (-20 to 60C)
Storage Temperature1 3 months: 32 to 77 F (0 to 25 C) 1 month: -4 to 86 F (-20 to 30 C) 3 months: 32 to 77 F (0 to 25 C) 1 month: -4 to 86 F (-20 to 30 C)
Self-Discharge Rate <1% loss per month <1% loss per month
Cycle Life 10,000+ (@80% DOD) 10,000+ (@80% DOD)
Memory Effect None None
Warranty Period 10 Years 10 Years
Weight 17.14 lbs (7.77 kg) 17.14 lbs (7.77 kg)
Dimensions 11.25 x 5.25 x 6.25 in. / 0.21 ft3 (28.58 x 13.34 x 15.88 cm / 0.06 m3) 11.25 x 5.25 x 6.25 in. / 0.21 ft3 (28.58 x 13.34 x 15.88 cm / 0.06 m3)
