AccESS AmpliPHI
a fully integrated energy storage & management solution with closed loop communications and Sol-Ark equipment

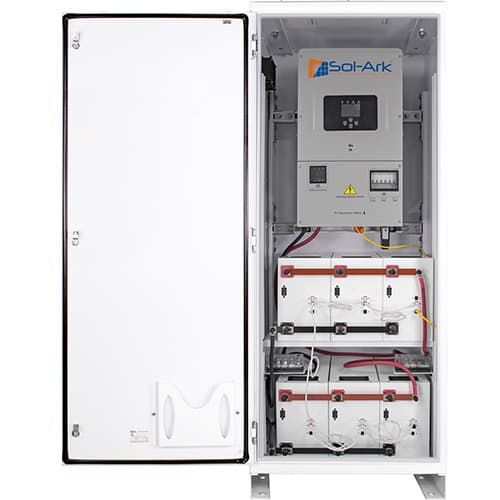

SimpliPhi Power's AccESS with AmpliPHI 3.8kWh batteries and Sol-Ark inverter is a fully integrated and pre-programmed energy storage and management solution with closed-loop communications that self-monitors, keeps the lights on and lowers utility bills, creating peace of mind for homeowners and businesses.

With 22.8kWh of storage capacity, the AccESS AmpliPHI maximizes PV generation by storing excess power for critical backup, evening hours and daily self-consumption to offset Time-Of-Use rates. Net-Metered customers can add energy storage to existing grid-tied solar systems for standby power or energy arbitrage. Off-grid customers can take advantage of integrated MPPT charge controls to create stand-alone systems for whole-home power and generator optimization with auto start capabilities. The AccESS AmpliPHI system scales easily to increase energy capacity with the BOSS.6 or BOSS.12 that automatically recalculates, reprograms and reconfigures settings in the Sol-Ark inverter through closed loop communications, creating resilience, energy security and daily cost savings with 98% efficient, safe and reliable access to power - 24/7.

SimpliPhi Power designs and manufactures efficient, non-toxic and enduring energy storage and management systems that utilize lithium ferro phosphate (LFP). Based in California, SimpliPhi combines non-hazardous LFP chemistry with its proprietary cell and battery architecture, power electronics, battery management system (BMS) and manufacturing methods to create safe, reliable, durable and highly scalable on-demand power solutions. Available for the residential, commercial, military and emergency response markets, SimpliPhi storage solutions have been rigorously tested and passed operational performance requirements by the U.S. Army and Marine Corps. Integral to all SimpliPhi solutions is a proprietary management system that further optimizes the life-cycle, round-trip efficiency rate, performance and durability of its batteries. SimpliPhi PHI 3.8 kWh 48V 60 Amp batteries are Certified to UL 1973 Standard.

• Specification Sheet | Download
• Installation Manual | Download
• Integration Guide | Download
• Warranty Terms | Download
• Return Policy | Download
• Terms and Conditions - Product Sales | Download

Standard Features
Internal transfer switch automatically disconnects from the grid during power outages and provides standby power for critical circuits

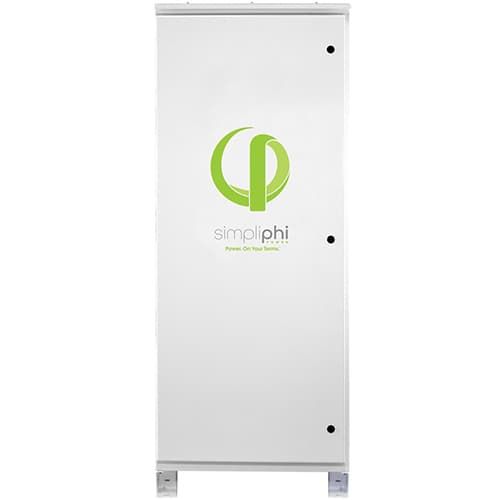

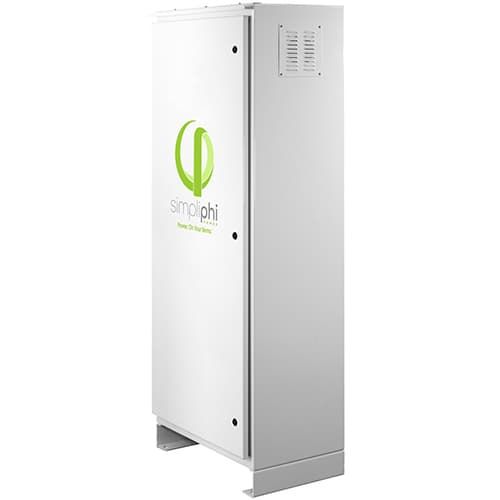

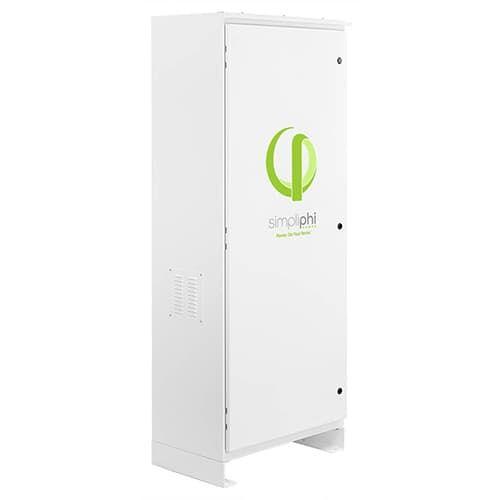

Outdoor rated enclosure can be free-standing, or pad-mounted
Advanced LFP batteries with a 10,000 cycle / 10-year warranty
98% round trip efficiency
Remote monitoring by web browser or mobile device app
No cobalt , thermal regulation, cooling, or risk of fire
Extended operating temperature
Solar MPPT for DC-coupled or off-grid installations
Automatic Generator control for additional standby power

APPLICATIONS
SIA (Standard Interconnection Agreement) customers: AccESS allows for solar PV power to be stored in batteries for a backup power source, or for self-consumption during evenings or other set times.
NEM (Net Energy Metering) customers: Add energy storage to an existing net-metered solar array for standby power or energy arbitrage purposes.
Off-grid customers: Up to 12 kW Solar MPPT combines power generation and energy management in a single package.
Disaster recovery customers: Reliable, 98% efficient, non-toxic backup power in the event of a power outage.

AccESS AmpliPHI Sol-Ark 12k 22.8kWH
General
Dimensions (W x H x D)	29.5” W x 76”H (w/feet) x 20” D / 75 cm W x 193 cm H x 51 cm D
Weight	600 lb (272.16 kg) (w/out batteries)
Enclosure Rating	NEMA 3R Outdoor rated
Operating Temperature	-4 F to 122 F (-20 C to 50 C)
Charging Temperature (batteries)	32 F to 120 F (0 C to 49 C)
Mounting	Free-standing or Pad-mounted
Enclosure Warranty Period	2 years
Certifications	UL1741SA Rule 21, HECO Rule 14H, PREPA approved and Rapid Shutdown compliant. Included batteries ETL certified and certified to UL 1973
Inverter
Sol-Ark	Sol-Ark 12K
Application	On or Off-Grid
AC Connections	1 Bi-Directional Grid Port (50A double-pole), 1 Bi-Directional Generator Port (40A double-pole), 1 UPS Load Output (50A double-pole)
Output Frequency (selectable)	60 Hz or 50 Hz
Output Voltage	L-N: 120VAC; L-L: 240VAC ? L-L: 208VAC (2/3 phases) ? 230VAC
Off-Grid Output Power System	8 kW Continuous
Solar PV Continuous Power	12 kW
Inverter AC Continuous Power	9 kW
Inverter Battery Continuous Power	To grid: 9 kW, To load: 8 kW
Max Output Charging Current	190 ADC
CEC Weighted Efficiency	96.5%
Warranty Period	10 yr standard
Parallel Stacking	Yes (needed for true 3 phase power)1
Other Features	EMP hardened upon request (against Nuclear EMP and Solar Flare), Smart Load capabilities (CTs included)
Solar PV - DC Coupled
Sol-Ark Dual MPPT	1 - 6 PV String Inputs (3 max per MPPT)
Max Connected PV Power	16.5 kW (8 kW max per MPPT) 12 kW max simultaneous utilization
Min PV Array Starting Voltage	175 VDC
Max Open Circuit PV Array Voltage	500 Voc per PV String
MPPT Voltage Range	150 - 425 VDC
Max Array Short Circuit Current	33A per MPPT
Max Array Operating Current	20A per MPPT
Solar PV - AC Coupled
Max AC Coupled Input	7.6 kW (string or micro-inverters)
Solar PV - DC & AC Coupled
Max Combined Solar Input (DC + AC)	16.5 kW
Best Combined Input Combination	3 kW AC + 12 kW DC
Good Combined Input Combination	4 kW AC + 11 kW DC
OK Combined Input Combination	5 - 7.6 kW AC + 9 - 7 kW DC 1 kW AC + 15 kW DC
Other Features
Internet Connected Computer or Phone App	PowerView ES Monitor and Programming
Communications	Closed loop communications between batteries and Sol-Ark inverter
Automatic Generator Start	Two-Wire Automatic Generator Start
Battery
SimpliPhi Power	(x6) AmpliPHI 3.8 kWh-48V
Rated kWh Capacity @ C/2	22.8 kWh
Usable kWh Capacity @ 80% DoD	18.24 kWh
Max Combined Output Power	11.4 kWh
Max Combined Charge Current	225 ADC
Charging Temperature	32 F to 120 F (0 C to 49 C)
Depth of Discharge3	up to 100% DoD
Round Trip Efficiency	98%
Cycle Life	10,000+ (@ 80% DOD)
Warranty Period	10 years
