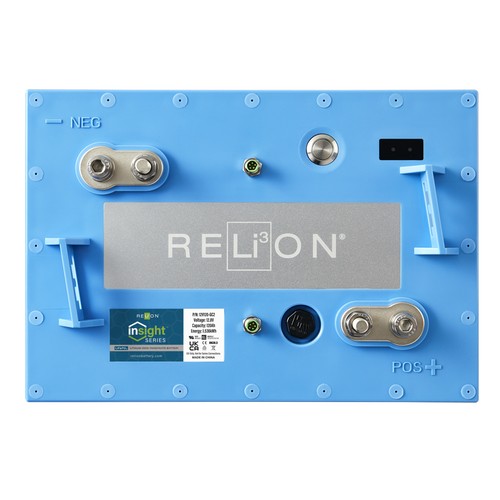

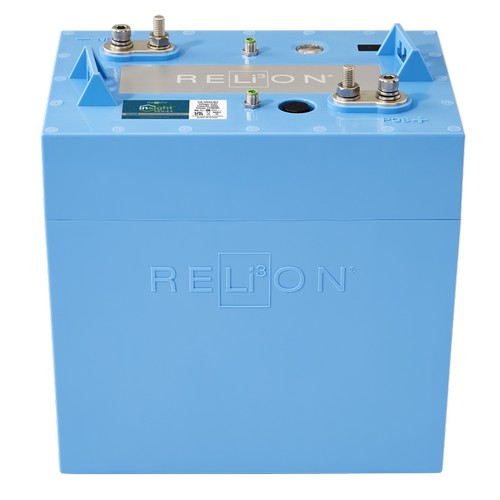

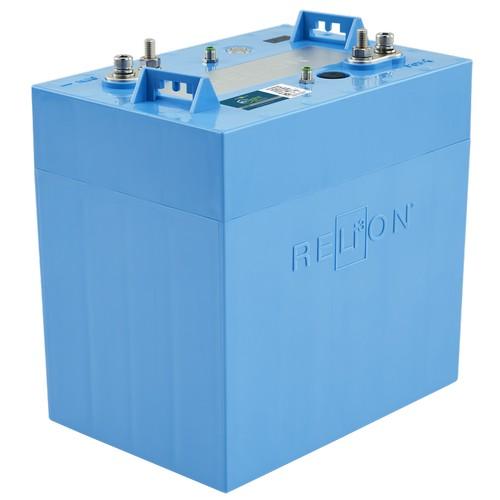

Relion Battery LLC, 12V120-GC2, LIFEPO4 InSight Lithium Battery GC2 001 12V, Not Series Capable, 12V, 120 Amp Hour , HAZMAT
Manufacturer Info
InSight Series 12V
12V 120Ah
Deep Cycle Lithium Battery
GC2
Offering higher peak discharge and outputting 160A continuous, the InSight 12V LiFePO4 battery was built specifically to meet the power and energy requirements in RV and Marine deep-cycle applications. Delivering unmatched performance with its higher continuous capabilities, you can run multiple appliances at the same time with just one battery.
Easy Installation
InSight batteries come in BCI group size GC2/GC8 allowing for easy installation without modifying trays or battery compartments.
Super Smart BMS
The robust Battery Management System features a combined total of 48 charge and discharge MOFSETs that control current flow in and out of the battery, along with multilayer protective devices that prevent over/under voltage, current and temperature conditions. The multilayer protection allows InSight batteries to pass stringent UL safety standards.
Robust Communication
CANbus connections allow batteries to communicate real-time operating statistics like the voltage, current, state of charge and state of health, making InSight batteries more user friendly. Plus, all batteries feature a sleep and pulse recovery operation mode to conserve power.
Scalable System
InSight batteries offer freedom and flexibility by utilizing parallel connections, so you can scale your system to provide increased power and energy (up to 300Ah) as needed.
Intelligent Cooling
InSight Series uses a carefully engineered cooling management system to quickly remove heat from inside the battery during conditions of high discharge and recharge currents. This prevents overheating of critical components and extends the life of the battery.
12V 120Ah
Deep Cycle Lithium Battery
GC2
Offering higher peak discharge and outputting 160A continuous, the InSight 12V LiFePO4 battery was built specifically to meet the power and energy requirements in RV and Marine deep-cycle applications. Delivering unmatched performance with its higher continuous capabilities, you can run multiple appliances at the same time with just one battery.
Easy Installation
InSight batteries come in BCI group size GC2/GC8 allowing for easy installation without modifying trays or battery compartments.
Super Smart BMS
The robust Battery Management System features a combined total of 48 charge and discharge MOFSETs that control current flow in and out of the battery, along with multilayer protective devices that prevent over/under voltage, current and temperature conditions. The multilayer protection allows InSight batteries to pass stringent UL safety standards.
Robust Communication
CANbus connections allow batteries to communicate real-time operating statistics like the voltage, current, state of charge and state of health, making InSight batteries more user friendly. Plus, all batteries feature a sleep and pulse recovery operation mode to conserve power.
Scalable System
InSight batteries offer freedom and flexibility by utilizing parallel connections, so you can scale your system to provide increased power and energy (up to 300Ah) as needed.
Intelligent Cooling
InSight Series uses a carefully engineered cooling management system to quickly remove heat from inside the battery during conditions of high discharge and recharge currents. This prevents overheating of critical components and extends the life of the battery.
- Product Specifications | Download
- InSight Battery Manual | Download
- InSight Quick Install Guide | Download
| FUNCTIONAL SPECIFICATIONS | |
|---|---|
| Nominal Voltage | 12.8V |
| Cell Chemistry | LiFePO4 |
| Cell Type | Prismatic |
| Ampere-hour Capacity | 120 Ah |
| Watthour Capacity | 1.536kWh |
| Specific Energy | 128Wh/kg |
| Charge Efficiency | 99% |
| Impedance (50% SOC, 1kHz) | <100m? |
| Cycles @ 80% DOD | >3500 |
| Parallel Capable | Yes (unlimited) |
| Series Capable | No (max 12V system) |
| MECHANICAL SPECIFICATIONS | |
|---|---|
| BCI Size | GC2 / GC8 |
| Dimensions (LxDxH) | 10.2 x 7.1 x 10.9 in (260x180x276mm) |
| Weight | 34.4 lbs (15.6 kg) |
| Case Material | ABS |
| Stud Terminal | M8 X 1.25 - 20 |
| Insert Terminal | M8 X 1.25 - 20 |
| Torque | 79.7-88.5 in-lbs. 6.6-7.4 ft-lbs. 9-10 N-m |
| Handles | Molded |
| Ingress Protection Marking | IP67 |
| Case Flame Rating | UL94 V-0 |
| DISCHARGE SPECIFICATIONS | |
|---|---|
| Continuous Discharge Current | 160A |
| Peak Discharge Current - 1 | 175A - 5 min |
| Peak Discharge Current - 2 | 250A - 2 min |
| Peak Discharge Current - 3 | 350A - 15 sec |
| Peak Discharge Current - 4 | 400A - 5 sec |
| Short Circuit Protection | 3000A - 300 ?sec |
| Protection Recover | Automatic |
| Low Voltage Disconnect | 10V - 5 sec (2.5vpc) |
| Low Voltage Reconnect | Automatic |
| Self-Discharge perMonth @ 25C in OFF mode | 2.80% |
| CHARGE SPECIFICATIONS | |
|---|---|
| Recommended Charging Current | 10-60A |
| Disconnect Charge Current - 1 | 100A |
| Disconnect Charge Current - 2 | 120A - 0.5 sec |
| Recommended Charge Voltage | 14.4-14.6V |
| Float Voltage | 13.8V |
| High Voltage Disconnect | 14.8V -4 sec (3.7vpc) |
| High Voltage Reconnect | Automatic |
| Temperature Compensation | None |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Charge Temperature | 32F to 113F (0C to 45C) |
| Discharge Temperature | -22F to 149F (-30C to 65C) |
| Operating Humidity | <90% RH |
| Storage Temperature | 50F to 95F (10C to 35C) |
| Storage Humidity | 25 to 85% RH |
| CERTIFICATIONS | |
|---|---|
| UL1973 (Battery Pack) | File Number: MH66011 |
| CE (Battery Pack) | |
| IEC 62133 (Battery Pack) | |
| UN38.3 (Battery Pack) |
| SHIPPING CLASS |
|---|
| UN 3480, Class 9 |
