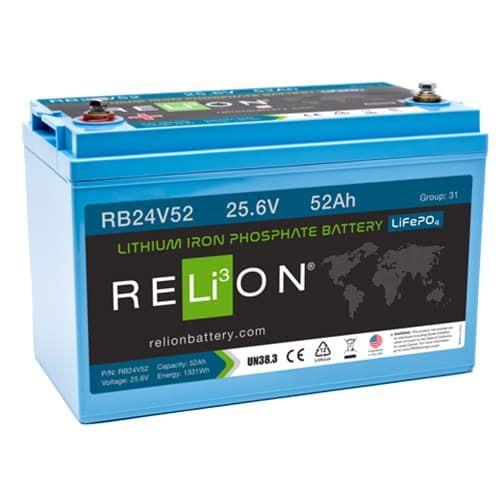

This 24V 52Ah lithium iron phosphate battery is perfect in many applications, including marine and electric vehicles. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RB24V52 battery meets UL, CE and IEC certifications.
Product Specifications - Voltage: 25.6V
- Amp Hours: 52Ah
- Product Specifications | Download
Dimensions & Weight - Length: 13 in (329 mm)
- Width: 6.8 in (172 mm)
- Height: 8.4 in (214 mm)
- Weight: 29.1 lbs (13.2 kg)
Applications - AWP
- Floor Machines
- Marine
- Solar
| Electrical Specifications |
| Nominal Voltage | 25.6 V |
| Nominal Capacity | 52 Ah |
| Capacity @ 25A | 120 min |
| Energy | 1280 Wh |
| Resistance | ?60 m? @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 1 (Single Use) |
| Mechanical Specifications |
| Dimensions (L x W x H) | 13.0 x 6.8 x 8.4” (329 x 172 x 214 mm) |
| Weight | 29.1 lbs (13.2 kg) |
| Terminal Type | M8 x 1.25 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP66 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
| Discharge Specifications |
| Maximum Continuous Discharge Current | 50 A |
| Peak Discharge Current | 100 A (7.5 s 2.5 s) |
| BMS Discharge Current Cut-Off | 215 A 15 A (10 5 ms) |
| Recommended Low Voltage Disconnect | 22 V |
| BMS Discharge Voltage Cut-Off | 16 V (2.0 0.08 vpc) (20 6 ms) |
| Reconnect Voltage | 20 V (2.5 0.05 vpc) |
| Short Circuit Protection | 200-600 s |
| Charge Specifications |
| Recommended Charge Current | 2.5 A - 25 A |
| Maximum Charge Current | 50 A |
| Charge Current 32F to 14F (0 to -10 C) | ?0.1 C |
| Charge Current -4F to 14F (-20 to -10 C) | ?0.05 C |
| Recommended Charge Voltage | 28.4 V - 29.2 V |
| BMS Charge Voltage Cut-Off | 31.2 V (3.9 0.025 vpc) |
| (1.1 0.4 s) |
| Reconnect Voltage | 30.4 V (3.8 0.05 vpc) |
| Balancing Voltage | 28.8 V (3.6 vpc) |
| Temperature Specifications |
| Discharge Temperature | -4 to 140 F (-20 to 60 C) |
| Charge Temperature* | -4 to 113 F (-20 to 45 C) |
| Storage Temperature | 23 to 95 F (-5 to 35 C) |
| BMS High Temperature Cut-Off | 176 F (80 C) |
| Reconnect Temperature | 122 F (50 C) |
| *Refer to charge currents below 0C (32F) | |
| Compliance Specifications |
| Certifications | UN38.3 (battery) |
| CE (battery) |
| UL1642 (cells) (File# MH64523) |
| IEC62133 (cells) |
| Shipping Classification | UN 3480, CLASS 9 |
