SW PDP Solar Power Distribution Panel
Save installation time and money with SW Power Distribution Panels
The SW Power Distribution Panels are pre-wired out of the box and labeled to support the integration of SW inverter/chargers with a Conext MPPT Solar Charge Controller, battery bank and load centers. Designed to save installers significant time, effort and costs on every installation, the Distribution Panels offer excellent value when compared to customized options.
The solution set includes a DC distribution panel complete with a pre-installed 250 A DC breaker and additional breaker slots for integrating multiple DC power sources. AC distribution panels are also available for 120/240 VAC and 230 VAC requirements, pre-installed with multiple AC breakers for integrating AC power sources and loads. Each AC panel also supports the integration of fuel-based generators providing a central load center for managing an installation's AC power needs.

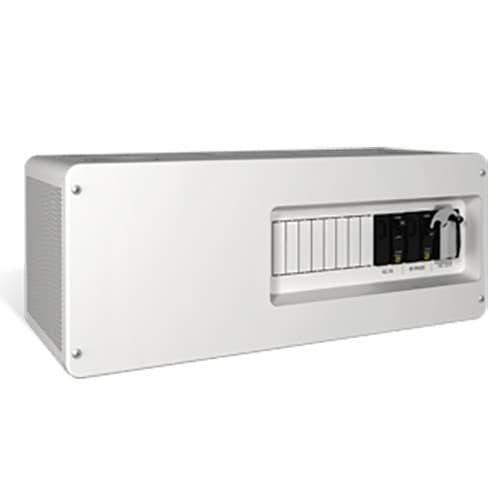

SW DC Breaker Panel - 865-1016
SW AC Breaker Panel 120/240V - 865-1017
Note: Note: DC breaker Master Packs 865-1065, 865-1070, 865-1075, 865-1080 have been replaced with the new part numbers above with the same breakers individually packaged.
Higher return on investment
Save installation time and money with SW Power Distribution Panels
The SW Power Distribution Panels are pre-wired out of the box and labeled to support the integration of SW inverter/chargers with a Conext MPPT Solar Charge Controller, battery bank and load centers. Designed to save installers significant time, effort and costs on every installation, the Distribution Panels offer excellent value when compared to customized options.
The solution set includes a DC distribution panel complete with a pre-installed 250 A DC breaker and additional breaker slots for integrating multiple DC power sources. AC distribution panels are also available for 120/240 VAC and 230 VAC requirements, pre-installed with multiple AC breakers for integrating AC power sources and loads. Each AC panel also supports the integration of fuel-based generators providing a central load center for managing an installation's AC power needs.
SW DC Breaker Panel - 865-1016
- 250A, 160VDC, Panel Mount DC Breaker (1 unit) - 865-DCBRK-250 included
- 125A, 125VDC, Panel Mount DC Breaker (1 unit) - 865-DCBRK-125
- 100A, 125VDC, Panel Mount DC Breaker (1 unit) - 865-DCBRK-100
- 80A, 125VDC, Panel Mount DC Breaker (1 unit) - 865-DCBRK-80
- 60A, 160VDC, Panel Mount DC Breaker (1 unit) - 865-DCBRK-60
- SW PDP Datasheet | Download
SW AC Breaker Panel 120/240V - 865-1017
Note: Note: DC breaker Master Packs 865-1065, 865-1070, 865-1075, 865-1080 have been replaced with the new part numbers above with the same breakers individually packaged.
Higher return on investment
- Integrate SW inverter/chargers and MPPT Solar Charge Controllers with a single battery bank
- Repeatable standard installation that saves time and money
- Additional DC and AC breaker slots available for expanded capacity
- Key holes available on side of DC panel for integrating MPPT 60 Solar Charge Controller
- Use AC distribution panels as optional load centers
- Breaker configuration allows SW inverter/chargers to be AC bypassed for servicing
- Removable front cover allows for visual inspection
Other Products in This Category
Schneider Electric, RNW865131501, Conext 3 Phase Breaker Kit, 3 sets 3 Pole 60A 120/208VAC for PDP$404.69 $311.30

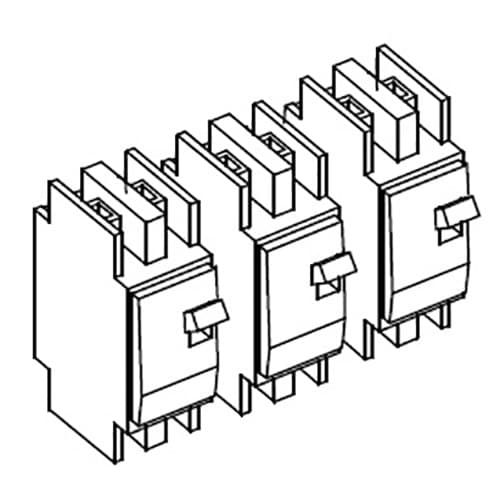

Schneider Electric, RNW865121501, Conext 120/240VAC Breaker Kit 3 Sets 2-Pole 60A 120/240VAC (For PDP)$266.95 $205.35
