Manufacturer Info
Install for less, harvest more energy

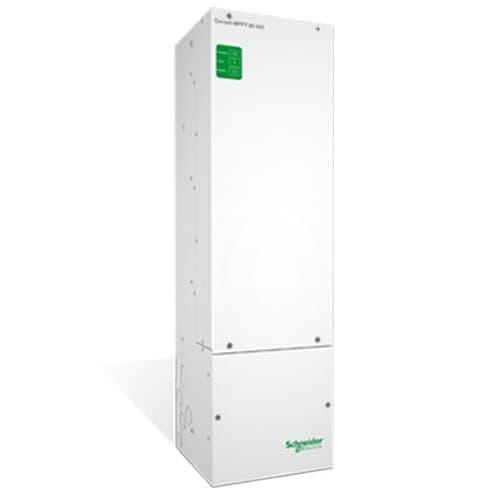

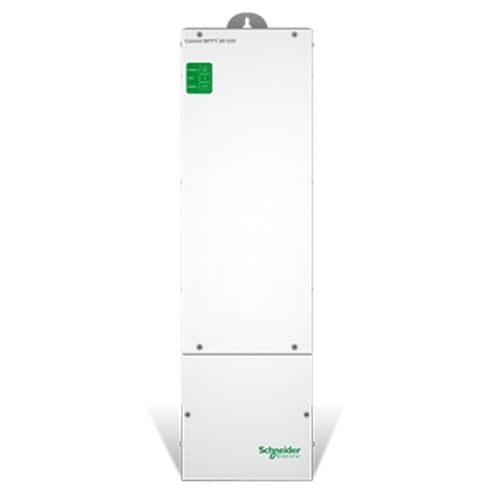

The ConextTM MPPT 80 600 solar charge controller offers an industry-first set of integration features and top performance that allows for large PV array systems to be easily installed and connected to the battery bank at the lowest overall cost. Installing one MPPT 80 600 is faster than installing multiple smaller charge controllers and lowers overall costs further by utilizing fewer PV strings, smaller wiring and conduit, and by eliminating the need for PV combiner boxes and DC circuit breakers.
Why choose Conext MPPT 80 600
Higher return on investment
The ConextTM MPPT 80 600 solar charge controller offers an industry-first set of integration features and top performance that allows for large PV array systems to be easily installed and connected to the battery bank at the lowest overall cost. Installing one MPPT 80 600 is faster than installing multiple smaller charge controllers and lowers overall costs further by utilizing fewer PV strings, smaller wiring and conduit, and by eliminating the need for PV combiner boxes and DC circuit breakers.
Why choose Conext MPPT 80 600
Higher return on investment
- Installs faster with fewer costly components
- Improve battery life with selectable multi-stage temperature compensated charging
- Harvest more energy with shade tolerant fast sweep MPPT algorithm
- Robust design through rigorous Multiple Environmental Over Stress Testing (MEOST)
- Available remote monitoring and configuration
- Compatible with any brand of PV module, any grounding method
- Stand-alone application or full integration with Conext XW inverter charger system
- Fewer string wires
- Smaller AWG Wire
- No need for combiner box or GFI circuit breaker
- Product Specifications | Download
- Product Manual | Download
| Range of product | XW |
| Device short name | XW-MPPT80-600 |
| Product or component type | Solar charge controller |
| Battery voltage | 48 V DC24 V DC |
| Complementary | |
| Input voltage | 600 V195 V DC - open circuit |
| Enclosure type | Ventilated |
| Enclosure material | Sheet metal chassis |
| Device mounting | Wall mounted vertical |
| Cable entry | 7/8" and 1" knock-outs |
| Product weight | 13.5 kg |
| Environment | |
| AWG gauge | 14...6 |
| Ambient air temperature for operation | -20...45 C |
| Ambient air temperature for storage | -40...85 C |
| Operating altitude | 0...2000 m |
| Standards | UL 1741CSA C22.2 No 107.1 |
| Product certifications | FCC Class B |
| Marking | CE |
