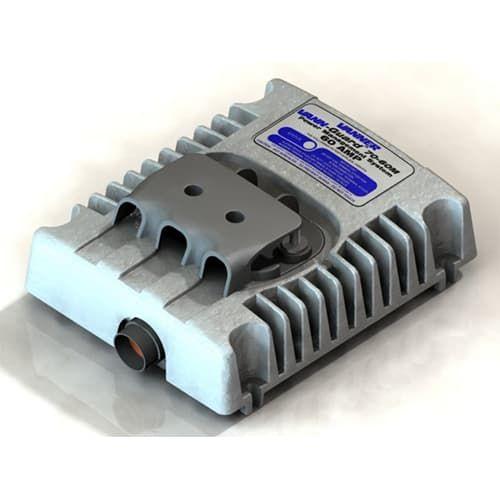

Vanner Inc, 70-100CAN, Battery Equalizer, 24 to 12 Volt 100 Amp w/ Monitor (Internal EM-70D)
Manufacturer Info
The Vanner VANN-Bus CAN Power Management System is an efficient and highly reliable method of obtaining a 12 volt DC power source from a 24 volt DC electrical system. The VANN us makes the batteries look like they are in series and parallel at the same time. In addition to providing regulated 12 volt power, the system ensures that battery voltages remain equal which significantly extends battery life. Ideally suited for vehicle and alternate energy applications, the VANN-Bus is designed to save your batteries and the money you would spend replacing them. Users of the Vanner VANN-Bus know that it is the most cost effective and dependable solution for dual voltage systems.
The CAN (Controller Area Network) Capable Smart Monitor is a device designed to monitor and report the status of several critical functions in the vehicle electrical system. This unit provides real-time fault signals over the CAN bus to the vehicle electrical system controller. Fault indications can then be given from the vehicle's electrical system controller.
A typical system would include a 24VDC power source, such as an alternator or solar array, two 12 volt battery banks in series, and the VANN-Bus. The VANN-Bus connects to the 24 volt, 12 volt and ground terminals of the battery system. When the 12 volt loads require power, the VANN-Bus ensures that the current is taken equally from both batteries, and that the voltages of the two batteries are kept equal. This equalization ensures extended battery life and provides a stable 12 volt supply for operating accessories.
Paralleling VANN-Bus Models are available which provide 60, 80 and 100 amps of 12 volt DC power. VANN-Bus may also be operated in parallel to provide more power. For example, two 60 amp units can be installed to provide 120 amps of 12 volt DC power.
The Vanner VANN-Bus CAN Power Management System is an extremely reliable device and, when installed according to the instructions, will provide reliable operation for an indefinite period of time. However, if a system abnormality should develop that would cause a VANN-Bus malfunction, damage to the battery system could result if 12 volt loads are present.
The CAN (Controller Area Network) Capable Smart Monitor is a device designed to monitor and report the status of several critical functions in the vehicle electrical system. This unit provides real-time fault signals over the CAN bus to the vehicle electrical system controller. Fault indications can then be given from the vehicle's electrical system controller.
A typical system would include a 24VDC power source, such as an alternator or solar array, two 12 volt battery banks in series, and the VANN-Bus. The VANN-Bus connects to the 24 volt, 12 volt and ground terminals of the battery system. When the 12 volt loads require power, the VANN-Bus ensures that the current is taken equally from both batteries, and that the voltages of the two batteries are kept equal. This equalization ensures extended battery life and provides a stable 12 volt supply for operating accessories.
Paralleling VANN-Bus Models are available which provide 60, 80 and 100 amps of 12 volt DC power. VANN-Bus may also be operated in parallel to provide more power. For example, two 60 amp units can be installed to provide 120 amps of 12 volt DC power.
The Vanner VANN-Bus CAN Power Management System is an extremely reliable device and, when installed according to the instructions, will provide reliable operation for an indefinite period of time. However, if a system abnormality should develop that would cause a VANN-Bus malfunction, damage to the battery system could result if 12 volt loads are present.
- Owners Manual | Download
