Manufacturer Info

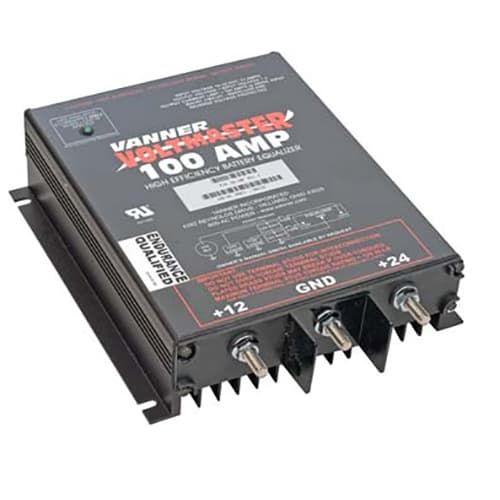

With the Vanner VoltMaster battery equalizer, you can run 12 volt loads from your 24 volt battery system. Perfect for transit buses, private coaches, tour & charter buses, heavy trucks, off-highway equipment and alternative energy applications
12 Volt DC Power from Your 24 Volt DC System
With Vanner VoltMaster battery equalizers, you can have an abundance of 12 volt DC power from your 24 volt battery system. Our equalizers allow operation of more reliable and less costly 12 volt lighting and equipment on 24 volt electrical systems, saving you time and money.
Extend the Life of Your Batteries
With Vanner VoltMaster battery equalizers, the voltage between each 12 volt battery is balanced in a 24 volt series connected battery array. This arrangement equalizes the 24 volt battery system and avoids the over/under charge problems associated with other approaches to providing 12 volts of power.
A Simple, More Reliable 24/12 Volt System
With Vanner VoltMaster battery equalizers, you can avoid the reliability problems associated with complicated and space consuming dual alternators on vehicles, or multiple battery chargers on renewable energy systems.
Sizes for Any Application Need
Whether you need just 10 amps to operate a two-way radio or 200 amps to support a fully loaded tour bus, Vanner has the right size equalizer to meet your application needs. Please see the back of this brochure for specifications.
VoltMaster Equalizer Operation
In many 24 volt electrical systems, it is desirable to tap into the battery system to obtain power for 12 volt loads. This method, while seemingly simple, causes a charge imbalance resulting in Battery B (see diagram) being overcharged, and possibly boiling, while Battery A discharges.
To solve this application problem, the Vanner VoltMaster battery equalizer is connected to the battery system at the +24, +12 and ground points. The battery equalizer maintains the voltage balance and charge acceptance rate of each battery to within 0.1 volts under light loads and within 0.5 volts at full loads. When the voltage of Battery A is higher than that of Battery B, the battery equalizer is in standby mode, meaning it is not transferring power from its 24 volt input to its 12 volt output. When a 12 volt load is present, and Battery A's voltage decreases to just below the voltage of Battery B, the battery equalizer activates and transfers sufficient current from Battery B to Battery A, satisfying the load and maintaining an equal voltage and charge in both batteries.
Know What Your Battery System Is Doing
With Vanner Electrical System Monitors, you can monitor a number of critical functions on a 24/12 dual voltage system. These monitors indicate high battery voltage, low battery voltage and battery voltage imbalance which may be caused by alternator failure or overloading of the 12 volt DC power.
12 Volt DC Power from Your 24 Volt DC System
With Vanner VoltMaster battery equalizers, you can have an abundance of 12 volt DC power from your 24 volt battery system. Our equalizers allow operation of more reliable and less costly 12 volt lighting and equipment on 24 volt electrical systems, saving you time and money.
Extend the Life of Your Batteries
With Vanner VoltMaster battery equalizers, the voltage between each 12 volt battery is balanced in a 24 volt series connected battery array. This arrangement equalizes the 24 volt battery system and avoids the over/under charge problems associated with other approaches to providing 12 volts of power.
A Simple, More Reliable 24/12 Volt System
With Vanner VoltMaster battery equalizers, you can avoid the reliability problems associated with complicated and space consuming dual alternators on vehicles, or multiple battery chargers on renewable energy systems.
Sizes for Any Application Need
Whether you need just 10 amps to operate a two-way radio or 200 amps to support a fully loaded tour bus, Vanner has the right size equalizer to meet your application needs. Please see the back of this brochure for specifications.
VoltMaster Equalizer Operation
In many 24 volt electrical systems, it is desirable to tap into the battery system to obtain power for 12 volt loads. This method, while seemingly simple, causes a charge imbalance resulting in Battery B (see diagram) being overcharged, and possibly boiling, while Battery A discharges.
To solve this application problem, the Vanner VoltMaster battery equalizer is connected to the battery system at the +24, +12 and ground points. The battery equalizer maintains the voltage balance and charge acceptance rate of each battery to within 0.1 volts under light loads and within 0.5 volts at full loads. When the voltage of Battery A is higher than that of Battery B, the battery equalizer is in standby mode, meaning it is not transferring power from its 24 volt input to its 12 volt output. When a 12 volt load is present, and Battery A's voltage decreases to just below the voltage of Battery B, the battery equalizer activates and transfers sufficient current from Battery B to Battery A, satisfying the load and maintaining an equal voltage and charge in both batteries.
Know What Your Battery System Is Doing
With Vanner Electrical System Monitors, you can monitor a number of critical functions on a 24/12 dual voltage system. These monitors indicate high battery voltage, low battery voltage and battery voltage imbalance which may be caused by alternator failure or overloading of the 12 volt DC power.
