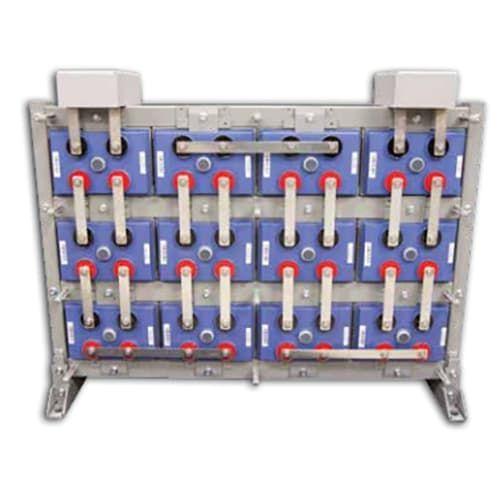

The EnergyCell RE high capacity battery family offers an ideal solution for large capacity Valved Regulated Lead Acid (VRLA) battery requirements. The EnergyCell RE high capacity battery's steel can (module) design concept, with its integral racking system, provides a cost effective battery system with a compact, quick and simple installation process.

The EnergyCell RE high capacity battery system's AGM technology incorporates an enhanced cell design with a superior racking system. The enhanced cell incorporates thicker positive plates for longer life. The welded/epoxy dual post seal design provides the highest integrity seal in the industry. The large copper post design also enhances the high rate performance.

The EnergyCell RE high capacity battery provides excellent performance and service life in grid-tied, grid-interactive and off-grid renewable energy and UPS solutions.

Product Highlights

• Ideal for large capacity VRLA battery requirements
• 100% "Out-of-Box" initial battery capacity
• VRLA AGM Technology: Low maintenance, no watering required
• EnergyCell RE High-Capacity Spec Sheet | Download
• Energy Storage Solutions by Application | Download
• EnergyCell RE High Capacity Owners manual | Download

	800RE	1100RE	1300RE	1600RE	2000RE	2200RE	2700RE
Nominal Voltage Per Cell	2V	2V	2V	2V	2V	2V	2V
Capacity 20Hr Rate (1.75VPC)	672	960	1148	1378	1716	1836	2288
Capacity 100Hr Rate (1.75VPC)	810	1150	1340	1600	2070	2140	2770
Watts Per Cell 15min Rate (1.67VPC)	1230	1757	1995	2394	3071	3192	4094
Cycle Life 50% DOD (25C)	1800 Cycles	1800 Cycles	1800 Cycles	1800 Cycles	1800 Cycles	1800 Cycles	1800 Cycles
Optimal Operating Temperature Range	23 to 26C	23 to 26C	23 to 26C	23 to 26C	23 to 26C	23 to 26C	23 to 26C
OCV Per Cell Limit*	2.05	2.05	2.05	2.05	2.05	2.05	2.05
Initial Charge Voltage Per Cell**	2.27	2.27	2.27	2.27	2.27	2.27	2.27
Float Voltage Per Cell (25C)	2.25	2.25	2.25	2.25	2.25	2.25	2.25
Float Voltage Per Cell (35C)	2.21	2.21	2.21	2.21	2.21	2.21	2.21
Equalize Voltage Per Cell (21 to 32C)	2.32	2.32	2.32	2.32	2.32	2.32	2.32
Maximum Charge Current (A)	148.75	212.5	250	300	375	400	500
Shelf Life (25C)	6 months	6 months	6 months	6 months	6 months	6 months	6 months
Short Circuit Current (A)	4728	6748	7722	9267	12411	12337	16548
Internal Resistance (micro )	441	309	270	225	168	169	126
Terminal Torque (Intercell Connects)	88 in-lbs
Hardware Specification (Intercell Connects)	M8 bolt, lock and flat washer
Weight Per Cell (lb)	114.3	162.3	188.3	222.3	272.3	290.3	358.3
Dimensions Per Cell L x W x H (in)	21.8 x 11.9 x 6.5	21.8 x 8.4 x 6.5	24.5 x 8.4 x 6.5	24.5 x 9.9 x 6.5	23.5 x 9.9 x 8.9	24.5 x 12.9 x 6.5	23.5 x 12.9 x 8.9
