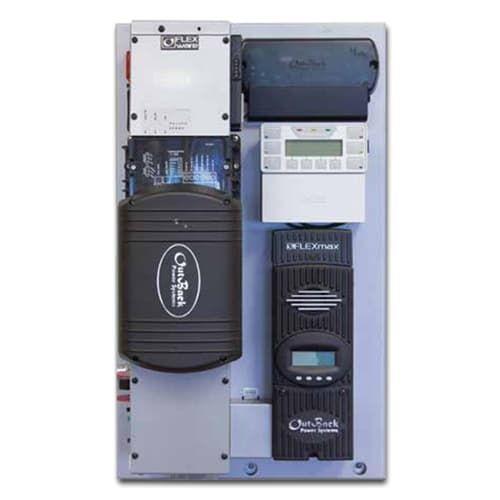

(image for) Outback Power, FP1 FXR2524A-01, FLEXpower One 2.5 kW, 24 VDC solution, single FXR2524A-01, prewired AC and DC boxes with 120 VAC Bypass, NEMA 5-20R GFCI Outlet, 175 Amp DC breaker, GFDI, 80 Amp PV breaker, Mate3s, HUB 10.3, RTS, FLEXmax 80, FLEXnet DC and surge protector. Listed to UL1741-SA

The images shown are for illustration purposes only and may not be an exact representation of the product

Outback Power, FP1 FXR2524A-01, FLEXpower One 2.5 kW, 24 VDC solution, single FXR2524A-01, prewired AC and DC boxes with 120 VAC Bypass, NEMA 5-20R GFCI Outlet, 175 Amp DC breaker, GFDI, 80 Amp PV breaker, Mate3s, HUB 10.3, RTS, FLEXmax 80, FLEXnet DC and surge protector. Listed to UL1741-SA

Model: FP1 FXR2524A-01
Manufactured by: Outback Power
Condition: New
Estimated Delivery: Nov 23rd - Nov 29th
In Stock
Out of Stock

Price:

$6,232.16 $4,793.97

Would you like to add these items to your order?

	Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port $731.91 $563.00	Add Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port to cart
	Outback Power, HUB4, Four Port, up to 4 devices and one MATE $266.48 $204.98	Add Outback Power, HUB4, Four Port, up to 4 devices and one MATE to cart
	Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE $498.28 $383.29	Add Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE to cart

Manufacturer Info

Other products

Product Highlights

Factory tested, pre-wired and pre-configured systems
Fast installation - just hang on the wall with the bracket (included) and make connections
Off-grid and grid-tied functionality in one flexible system
Powerful system in a compact, space-saving footprint
Field-upgradable software
Ample AC and DC breaker provisions
GridZero technology effectively lets users “zero out” the utility grid if enough renewables are present, reducing or even eliminating grid dependence
Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
All components carry necessary ETL certifications
FLEXpower ONE FXR Datasheet | Download
60Hz FXR (A) Series Datasheet | Download
50Hz FXR (E) Series Datasheet| Download
FLEXmax 60/80 Datasheet | Download
MATE3s Datasheet | Download
Warranty Information - English / Spanish | Download
Warranty Information - French / German | Download
FLEXpower ONE FXR STEP File | Download

OutBack's pre-assembled and pre-wired FLEXpower systems are equipped with the OutBack FXR / VFXR Series inverter/chargers. This means that the most advanced inverter features are now available on the industry's most trusted and proven systems platform, for unmatched flexibility and value.

6 models available for 120VAC or 230VAC applications, ranging from 2500W to 3600W.
50Hz/60Hz selectable for regional diversity
Programmable for seven different modes including GridZero, which blends utility power and stored renewable energy, minimizing grid dependence; also support mode for seamless generator integration
Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including lithium ion, and aqueous types
Field-upgradability eliminates system down-time for critical updates
Remote system control and monitoring available through any internet-enabled device with OPTICS RE

The FLEXpower ONE FXR series is ideal for residential and commercial applications including cabins, vacation homes, farm buildings, remote communications sites and back-up power systems, with all necessary components integrated into a compact hang-on-the-wall system with a minimal footprint.
