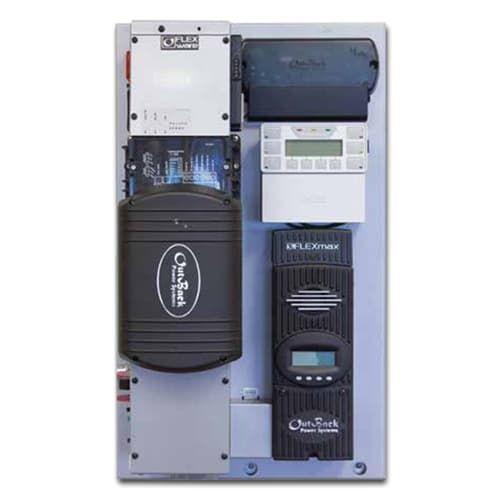

Outback Power, FP1 VFXR3524A-01, FLEXpower One 3.5 kW, 24 VDC solution, single VFXR3524A-01, prewired AC and DC boxes with 120 VAC Bypass, NEMA 5-20R GFCI Outlet, 250 Amp DC breaker, GFDI, 80 Amp PV breaker, Mate3s, HUB 10.3, RTS, FLEXmax 80, FLEXnet DC and surge protector. Listed to UL1741-SA
The images shown are for illustration purposes only and may not be an exact representation of the product

Outback Power, FP1 VFXR3524A-01, FLEXpower One 3.5 kW, 24 VDC solution, single VFXR3524A-01, prewired AC and DC boxes with 120 VAC Bypass, NEMA 5-20R GFCI Outlet, 250 Amp DC breaker, GFDI, 80 Amp PV breaker, Mate3s, HUB 10.3, RTS, FLEXmax 80, FLEXnet DC and surge protector. Listed to UL1741-SA

  • Model: FP1 VFXR3524A-01
  • Manufactured by: Outback Power
  • Condition: New
  • This product is currently on backorder.
    Expected Ship Date: Tuesday 03 June, 2025
Price:

$6,444.68 $4,957.44

Would you like to add these items to your order?
Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $731.91 $563.00

Outback Power, HUB4, Four Port, up to 4 devices and one MATE  $266.48 $204.98

Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $498.28 $383.29

Manufacturer Info

(image for) Outback Power
Product Highlights
  • Factory tested, pre-wired and pre-configured systems
  • Fast installation - just hang on the wall with the bracket (included) and make connections
  • Off-grid and grid-tied functionality in one flexible system
  • Powerful system in a compact, space-saving footprint
  • Field-upgradable software
  • Ample AC and DC breaker provisions
  • GridZero technology effectively lets users “zero out” the utility grid if enough renewables are present, reducing or even eliminating grid dependence
  • Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
  • All components carry necessary ETL certifications
  • FLEXpower ONE FXR Datasheet | Download
  • 60Hz FXR (A) Series Datasheet | Download
  • 50Hz FXR (E) Series Datasheet| Download
  • FLEXmax 60/80 Datasheet | Download
  • MATE3s Datasheet | Download
  • Warranty Information - English / Spanish | Download
  • Warranty Information - French / German | Download
  • FLEXpower ONE FXR STEP File | Download
OutBack's pre-assembled and pre-wired FLEXpower systems are equipped with the OutBack FXR / VFXR Series inverter/chargers. This means that the most advanced inverter features are now available on the industry's most trusted and proven systems platform, for unmatched flexibility and value.
  • 6 models available for 120VAC or 230VAC applications, ranging from 2500W to 3600W.
  • 50Hz/60Hz selectable for regional diversity
  • Programmable for seven different modes including GridZero, which blends utility power and stored renewable energy, minimizing grid dependence; also support mode for seamless generator integration
  • Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including lithium ion, and aqueous types
  • Field-upgradability eliminates system down-time for critical updates
  • Remote system control and monitoring available through any internet-enabled device with OPTICS RE
The FLEXpower ONE FXR series is ideal for residential and commercial applications including cabins, vacation homes, farm buildings, remote communications sites and back-up power systems, with all necessary components integrated into a compact hang-on-the-wall system with a minimal footprint.
