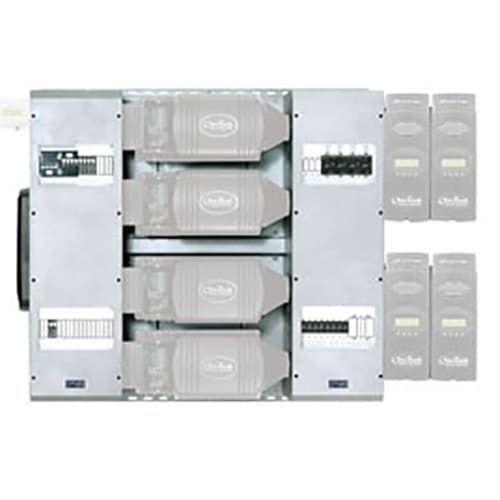

(image for) Outback Power, FW1000-AC, AC breaker enclosure - fits at the AC side of up to four FXR Series Inverter/Chargers. Includes ground bus bar and two DIN mounting brackets for up to thirty-two DIN type breakers (not included) and two GFCI AC outlets (not included). Requires optional FW-ACAs for connection of each FX Series Inverter/Charger

The images shown are for illustration purposes only and may not be an exact representation of the product

Outback Power, FW1000-AC, AC breaker enclosure - fits at the AC side of up to four FXR Series Inverter/Chargers. Includes ground bus bar and two DIN mounting brackets for up to thirty-two DIN type breakers (not included) and two GFCI AC outlets (not included). Requires optional FW-ACAs for connection of each FX Series Inverter/Charger

Model: FW1000-AC
Manufactured by: Outback Power
Condition: New
Estimated Delivery: Nov 23rd - Nov 29th
In Stock
Out of Stock

Price:

$943.63 $725.87

Would you like to add these items to your order?

	Outback Power, HUB4, Four Port, up to 4 devices and one MATE $266.48 $204.98	Add Outback Power, HUB4, Four Port, up to 4 devices and one MATE to cart
	Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port $731.91 $563.00	Add Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port to cart
	Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE $498.28 $383.29	Add Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE to cart

Manufacturer Info

Other products

The FLEXware 1000 is for applications with large power requirements such as large residential, commercial or village power systems. The FLEXware 1000 system architecture is capable of supporting up to four OutBack FX Series Inverter/Chargers, four OutBack charge controllers, and all the required AC and DC components and wiring. Utilizing a compact design, FLEXware 1000 AC and DC enclosures accommodate all of the essential protective devices with lots of room for additional breakers and large cable connections and can be mounted either vertically or horizontally.

Product Highlights

Large power requirements such as large residential, commercial or village power systems
Capable of supporting up to four OutBack FX Series Inverter/Chargers
Four OutBack charge controllers
Compact design
Vertical and horizontal mounting options
FLEXware ACA AC Conduit Adapter User's Guide | Download
FLEXware Mounting Plate User's Guide | Download
FLEXware 1000 User's Guide | Download
FW-IOB-Q-120VAC Input/Output/Bypass Assembly - Installation Instructions | Download
FW-IOB-Q-230VAC Input/Output/Bypass Assembly - Installation Instructions | Download
FW-IOB-Q-240VAC Input/Output/Bypass Assembly - Installation Instructions | Download
FW-IOB-T-120/208VAC Input/Output/Bypass Assembly - Installation Instructions | Download
FW-IOB-T-230/400VAC Input/Output/Bypass Assembly - Installation Instructions | Download
FLEXware MATE3 Mounting Bracket - Installation Instructions | Download

AC enclosure which mounts at the AC side of three or four FX Series Inverter/Chargers. Supports eight terminal bus bars and one FW-X240. The FW1000 system utilizes two FW-MPs (mounting plates) and a set of the DCA and ACA conduit adapters for each inverter/charger. DC and AC breakers, Input-Output-Bypass Assemblies and all other additional components sold separately.

Includes: Ground bus bar, two DIN mounting brackets and FLEXware 1000 wiring raceway

Unit Dimensions	38.5 x 11.4 x 12.1" (97.8 x 29.0 x 30.7 cm)
Shipping Dimensions	14.5 x 13.6 x 40.6" (36.8 x 34.5 x 103.1 cm)
Shipping Weight	21 lbs. (9.5 kg)
Enclosure Type	Type-1 indoor (IP30)
